Products

To assist you in selecting the right HMD Kontro pump for your application, each product has a comprehensive range of resources including technical profile sheets, CAD drawings, dimensional drawings etc.



HMD Kontro GSV – General Service Vertical Sealless Magnetic Drive Pumps Frame 1

The GSV range of pumps is currently limited to one hydraulic – the 3x3x8. This pump has the same hydraulic performance as the GSA 3×1.5×8 but it should be noted that its connection sizes are different, per the GA drawings.

In essence this is a standard GSA pump with a vertical casing mated to it.


HMD Kontro GTA/GTI – General Transfer Sealless Magnetic Drive Pumps

The GT (General Transfer) range of pumps from HMD Kontro are versatile pumps that are not constrained by any international dimensional or performance specifications.

The pumps are close-coupled construction and can be supplied free-standing or baseplate mounted. Prime mover specifications of all denominations can be catered for.

The pumps are offered with a range of Synchronous Magnet Drives rated to match prime mover performance.

Flows to 37 m³/hr (163 gpm)
Heads to 58 m (190 ft)
Pressure 29.3 bar/425 psi
Temperature Range -40 to 260°C (-40 to 500°F)

HMD Kontro GTV – General Transfer Vertical Sealless Magnetic Drive Pumps

The GTV range of pumps is currently limited to one hydraulic – the 1x1x5. This pump has the same hydraulic performance as the GTA 1x1x5 but it should be noted that its connection sizes are different, per the GA drawings.

In essence this is a standard GTA pump with a vertical casing mated to it.

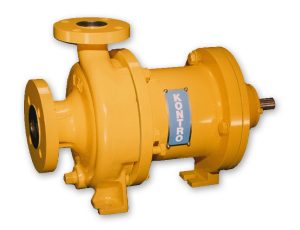

HMD Kontro GS – General Service Frame 0 Sealless Magnetic Drive Pumps

The GS (General Service) range of pumps from HMD Kontro are versatile pumps which are designed to cover a wide range of applications using minimum pump models through maximising component interchangeability.

Flows to 60 m³/hr (264 gpm)
Heads to 41 m (134 ft)
Pressure 18.9 bar / 275 psi
Temperature Range -40 to 315°C (-40 to 600°F)

HMD Kontro GS – General Service Frame 1 Sealless Magnetic Drive Pumps

The GS (General Service) range of pumps from HMD Kontro are versatile pumps which are designed to cover a wide range of applications using minimum pump models through maximising component interchangeability.

Flows to 70 m³/hr (308 gpm)
Heads to 61 m (200 ft)
Pressure 18.9 bar / 275 psi
Temperature Range -40 to 315°C (-40 to 600°F )

HMD Kontro GS – General Service Frame 2 Sealless Magnetic Drive Pumps

The GS (General Service) range of pumps from HMD Kontro are versatile pumps which are designed to cover a wide range of applications using minimum pump models through maximising component interchangeability.

Flows to 305 m³/hr (1346 gpm)
Heads to 140 m (459 ft)
Pressure 18.9 bar/275 psi
Temperature Range -40 to 315°C (-40 to 600°F)

HMD Kontro GSV – General Service Vertical Sealless Magnetic Drive Pumps Frame 0

The GSV range of pumps is currently limited to one hydraulic – the 3x3x5. This pump has the same hydraulic performance as the GSA 3×1.5×5 but it should be noted that its connection sizes are different, per the GA drawings.

In essence this is a standard GSA pump with a vertical casing mated to it.


HMD Kontro SPGS – Self Priming General Service Sealless Magnetic Drive Pumps

The SPGS pump from HMD Kontro is a self-priming sealless magnetic drive pump designed for reliable fluid transfer of liquids ranging from water to hazardous and toxic substances.

SPGS 0
Flows to 14 m³/hr (62 gpm)
Heads to 37 m (121 ft )
Pressure 10 bar / 145 psi
Temperature Range -40 to 120°C (-40 to 250°F)
SPGS I
Flows to 25 m³/hr (110 gpm)
Heads to 52 m (170 ft)
Pressure 10 bar / 145 psi
Temperature Range -40 to 120°C (-40 to 250°F)

HMD Kontro HPGS – High Pressure General Service Sealless Magnetic Drive Pump

The HPGS from HMD Kontro is a sealless magnetic drive pump for high-pressure applications and particularly suitable for use in the chemical and petrochemical industries as well as site utilities.

Model 1 x 1 x 5
Flows to 11 m³/hr (48 gpm)
Heads to  24 m (78 ft)
Pressure 148.9 bar / 2160 psi
Temperature Range -40 to 205°C (-40 to 400°F)
Model 1 x 1 x 6
Flows to 10.5 m³/hr (46 gpm)
Heads to  40 m (131 ft)
Pressure 148.9 bar / 2160 psi
Temperature Range -40 to 205°C (-40 to 400°F)

HMD Kontro CS – Chemical Service Sealless Magnetic Drive Pumps

A unique sealless magnetic drive pump for heat transfer in hot oil systems.

Flows to 400 m³/hr (1,760 gpm)
Heads to 150 m (490 ft)
Pressure 18.9 bar/275 psi
Temperature Range -80 to 450°C (-112 to 842°F)

HMD Kontro CSA/CSI – Chemical Service Sealless Magnetic Drive Pumps

Magnet Drive end suction centrifugal pumps in accordance to ASME B73.3-2015 or ISO 2858:2010/ISO 15783:2003

Flows to 64m³/hr (340 gpm)
Heads to 62m (296 ft)
Pressure 18.9 bar/275 psi
Temperature Range -40 to 260°C (-40 to 500°F)

HMD Kontro GSP – General Service Petroleum API 685 OH2 Sealless Magnetic Drive Pump

Sealless magnetic drive pumps from HMD Kontro are specifically designed for the safe handling and processing of hazardous and valuable hydrocarbons and chemicals for refineries throughout the world.

Frame I
Flows to 52 m³/hr (229 gpm)
Heads to 60 m (196 ft)
Pressure 40 bar / 580 psi
Temperature Range -40 to 350°C (-40 to 660°F)
Frame II
Flows to 405 m³/hr (1784 gpm)
Heads to  138 m (452 ft)
Pressure 40 bar / 580 psi
Temperature Range -40 to 350°C (-40 to 660°F)
Frame III
Flows to 570 m³/hr (2511 gpm)
Heads to 210 m (689 ft)
Pressure 40 bar / 580 psi
Temperature Range -40 to 350°C (-40 to 660°F)
Frame IV
Flows to 700 m³/hr (3084 gpm)
Heads to  350 m (1148 ft)
Pressure 40 bar / 580 psi
Temperature Range -40 to 350°C (-40 to 660°F)

HMD Kontro HPGSP – High Pressure OH2 API 685 General Service Petroleum Sealless Magnetic Drive Pump

The HPGSP sealless magnetic drive pump from HMD Kontro is a high-pressure pump used in the oil & gas, petrochemical and chemical industries. It provides reliable, safe processing and handling of hazardous and valuable hydrocarbons and chemicals.

Flows to 290 m³/hr (1540 gpm)
Heads to  150 m (715 ft)
Pressure 185 bar / 2680 psi
Temperature Range -100 to 260°C (-148 to 500°F)

HMD Kontro GSPX – General Service Petroleum BB5 API 685 Sealless Magnetic Drive Pump

The GSPX sealless magnetic drive pump from HMD Kontro is a multi-stage leak-free pump for safe and efficient high-differential processing and is particularly suitable for the handling of hazardous and valuable hydrocarbons and chemicals.

Flows to 85 m³/hr (450 gpm)
Heads to  295 m (1400 ft)
Pressure  40 bar / 580 psi
Temperature Range -40 to 260°C (-40 to 500°F)

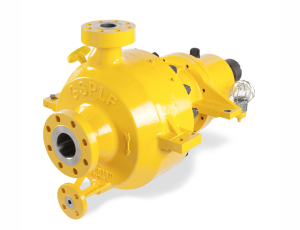

HMD Kontro GSPLF – General Service Petroleum Low Flow API 685 Sealless Magnetic Drive Pump

The GSPLF sealless magnetic drive pump from HMD Kontro is a low flow centreline mounted single stage pump with relatively high head capability. It is a versatile and highly efficient pump for the safe processing and handling of hazardous and valuable hydrocarbons and chemicals. It is typically used in toxic, aggressive, hot, crystallising and high value processes.

Flows to 30 m³/hr (160 gpm)
Heads to  150 m (720 ft)
Pressure 40 bar / 580 psi
Temperature Range -100 to 315°C (-145 to 600°F)

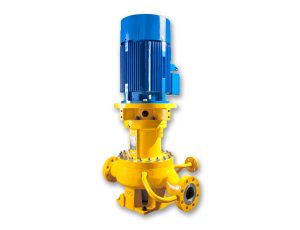

HMD Kontro GSPV – General Service Petroleum Vertical API 685 Sealless Magnetic Drive Pump

The GSPV sealless magnetic drive pump is a compact vertically mounted sealless magnetic drive pump, requiring minimum floor space. It is particularly suitable for the safe processing and handling of hazardous and valuable hydrocarbons and chemicals.

Flows to 235 m³/hr (1250 gpm)
Heads to  90 m (430 ft)
Pressure 40 bar / 580 psi
Temperature Range -40 to 205°C (-40 to 400°F)

HMD Kontro LMV 801S – Line Mounted Vertical Pump

Sealless magnetic drive pumps from HMD Kontro are specifically designed for the safe handling and processing of hazardous and valuable hydrocarbons and chemicals for refineries throughout the world.


HMD Kontro GSPVS – General Service Petroleum VS4 API 685 Vertical Suspended Sealless Magnetic Drive Pump

The GSPVS from HMD Kontro is a vertical suspended sealless magnetic drive pump that has all of the benefits in a compact package. It is particularly suited for tank unloading of hazardous and valuable process fluids and is built to API 685 and API 610 specifications and is fully ATEX compliant.

Flows to 440 gpm (62 m³/hr)
Heads to  1,400 ft (295 m)
Maximum Power 167 HP, 125 kW
Temperature Range -40 to 500°F (-40 to 260°C)
