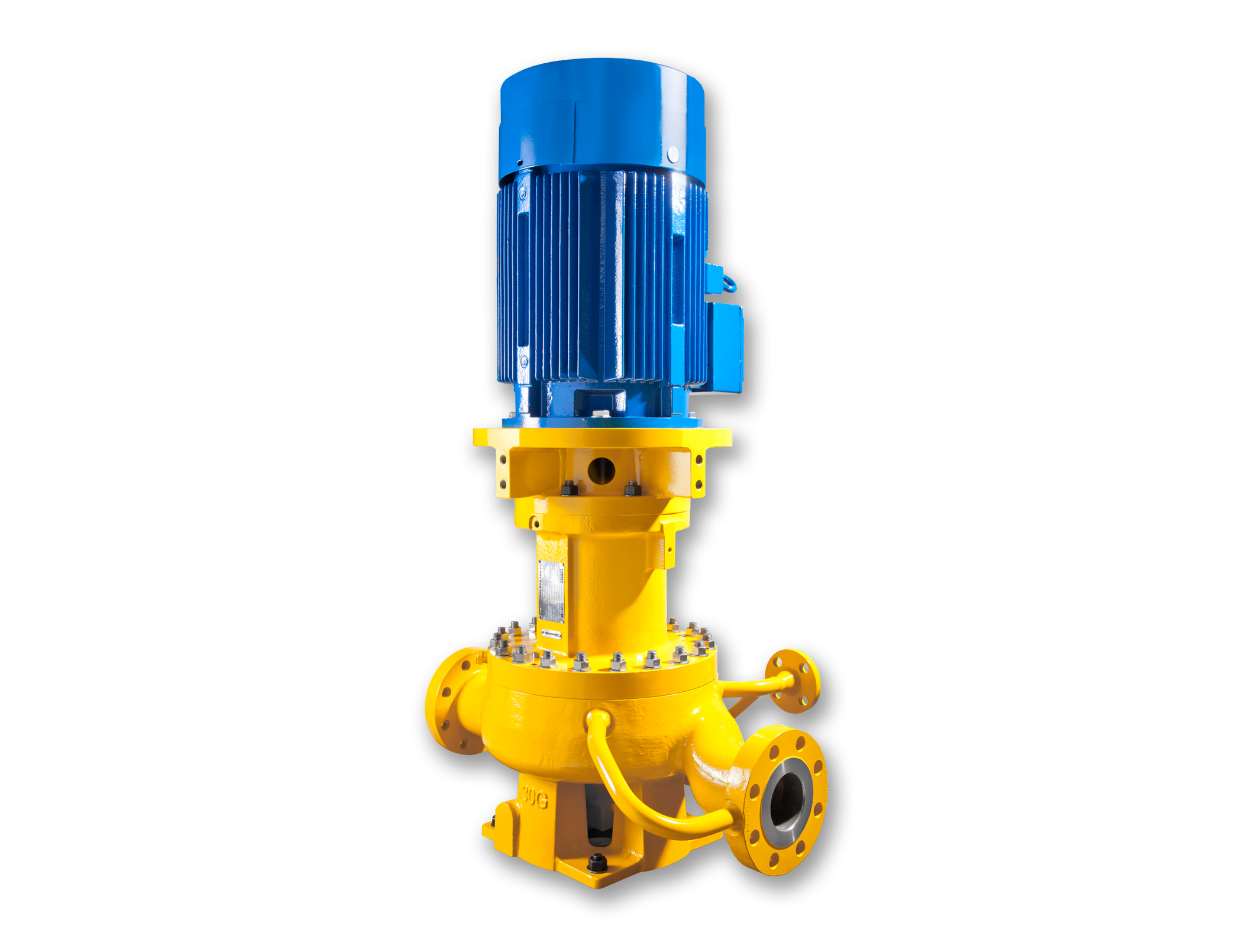

HMD Kontro GSPV – General Service Petroleum Vertical API 685 Sealless Magnetic Drive Pump

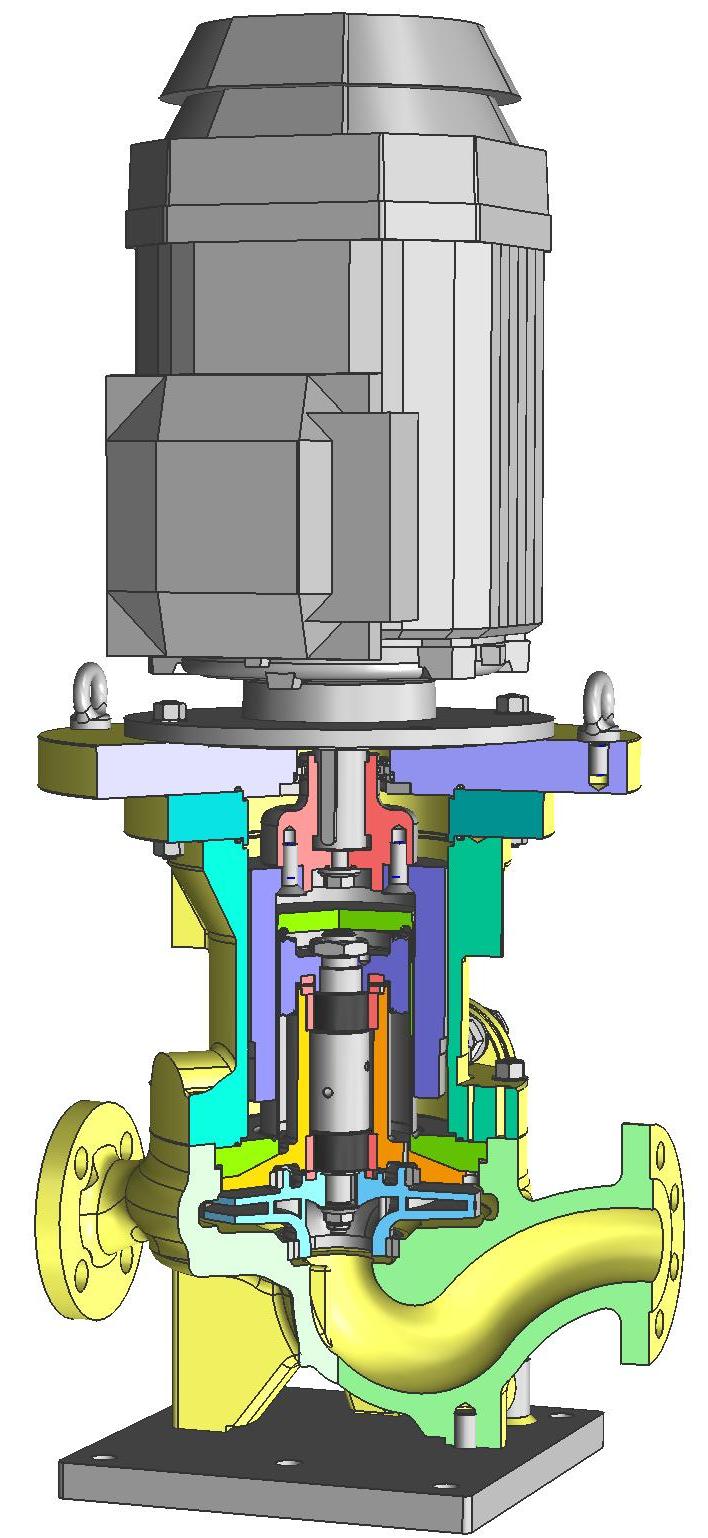

The GSPV sealless magnetic drive pump is a compact vertically mounted sealless magnetic drive pump, requiring minimum floor space. It is particularly suitable for the safe processing and handling of hazardous and valuable hydrocarbons and chemicals.
The GSPV pump has fixed diffuser parts outboard of the impeller instead of a volute casing, optimising efficiency and thus allowing for variation of the head rise to shut-off for a range of duty points. At least two diffuser options are offered with each hydraulic, and the diffuser can be changed in situ, without the need to remove the casing from the process, in the event that the pump duty changes significantly. The diffuser significantly reduces radial loads and the consequential low vibration levels and stabilises the characteristic head curve.

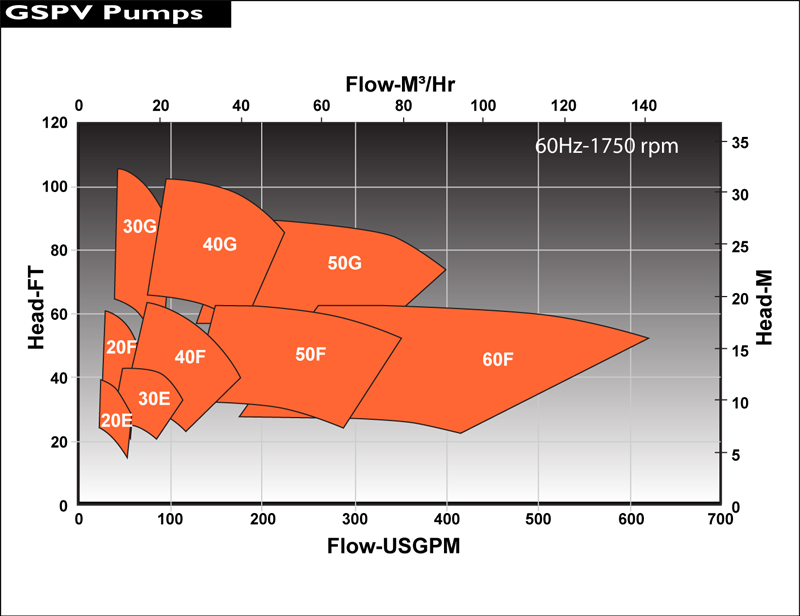

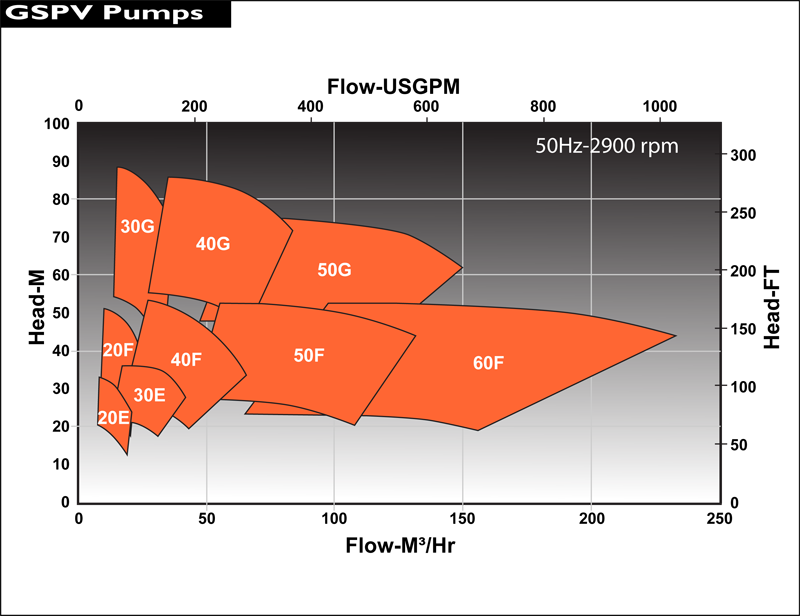

The design of the GSPV has nine hydraulics, which are split between 2 Frame (magnetic coupling) sizes to suit power requirements with the option of ZeroLoss® shells in all configurations.
Benefits of the HMD Kontro GSPV Pump:
-
- Rapid and economical maintenance
- Increased efficiency and low running costs, maximising online process time
- Conforms to API 685 standards and relevant API 610 requirements
- Sealless operation with no costly seal support systems to maintain
- Minimum maintenance and spares holding
- Conforms to BS 4082 and provides a sealless upgrade to existing installations
- Designed to retrofit to existing sealed designs
- ASME VIII compliant
| Flows to | 235 m³/hr (1250 gpm) |
| Heads to | 90 m (430 ft) |
| Pressure | 40 bar / 580 psi |
| Temperature Range | -40 to 205°C (-40 to 400°F) |
The GSPV range of vertical pumps can be used for many applications including booster packages, condensate transfer, hydrocarbon transfer and sampling packages. It is suitable for chemical, petrochemical and oil & gas installations and particularly for offshore operations where space is at a premium.
Applications
keyboard_arrow_down keyboard_arrow_up|
|
Oil & Water Process Pumps
High Suction Pressure Pumps High Capacity, High Pressure Pumps Produced Water Start Up Pumps Oil Start Up Pumps Gylcol Dehydration Pumps Sampling Pumps |
Closed Drain Pumps Flare Knockout Pumps Seawater Cooling Pumps Booster Pumps Heat Transfer Fluid Pumps Condensate Pumps |
Benefits
keyboard_arrow_down keyboard_arrow_upOur pumps combine cutting-edge technology with over seventy years of expertise and experience to give you complete piece of mind.
Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.
Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.
Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are HMD Kontro pumps that have been in operation for over 30 years and are still running today.
Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements. Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.
Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.
Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance. Standard pumps and parts are available from the factory and in the field.
Specifications
keyboard_arrow_down keyboard_arrow_upUS 60 Hz
| Heads to | 430 ft |
| Flows to | 1,250 gpm |
| Maximum Motor Power | 75 HP |
| Temperature Range | -40 to 400°F |
| Maximum Case Working Pressure | 580 psi |
| Hydrotest Pressure | 870 psi |
| Maximum Viscosity | 200 csT |
| Motor Details | Industry standard |
| Solids Range | Maximum of 5% w/w up to 150 microns |
| Mounting Configuration | Close coupled |
| Dimensional Standards | N/A |
| Number of Available Hydraulics | 9 |
| Available Flanges | ANSI 150lb / 300lb RF |
Metric 50 Hz
| Heads to | 90 m |
| Flows to | 235 m³/hr |
| Maximum Motor Power | 55 kW |
| Temperature Range | -40 to 205°C |
| Maximum Case Working Pressure | 40 Bar |
| Hydrotest Pressure | 60 Bar |
| Maximum Viscosity | 200 csT |
| Motor Details | Industry Standard |
| Solids Range | Maximum of 5% w/w up to 150 microns |
| Mounting Configuration | Close coupled |
| Dimensional Standards | N/A |
| Number of Available Hydraulics | 9 |
| Available Flanges | ANSI 150lb / 300lb RF |
Materials
keyboard_arrow_down keyboard_arrow_upStandard materials of construction
- A-8 and S-5 with silicon carbide internal bearings and spiral wound gaskets.
Other material options are available on request
- Duplex Stainless Steel
- Alloy 20 and Alloy C276
- Various flange options are available as standard
Power Monitor
keyboard_arrow_down keyboard_arrow_upPOWER MONITOR
Installed in the Motor Control Centre (MCC), a power monitor measures the power required to operate the pump. By setting High and Low trip points, the power monitor is the perfect solution for protecting your pump from:
- Dry running
- Low flow operation
- High flow operation
- Severe cavitation
- Magnet decoupling
New ZeroLoss™ Containment Shell
keyboard_arrow_down keyboard_arrow_upReduces Power Losses in the Pump to Zero
- Excellent energy savings can now be made thanks to the introduction of the ZeroLoss® containment shell for larger pumps. The elimination of eddy current losses can result in up to a 20% saving in power consumption, further enhancing the benefits and green credentials of magnetic drive technology from Sundyne HMD Kontro.
- The advantage increases in proportion with the magnetic coupling size and is particularly appropriate for larger pumps, making the magnetic drive option even more attractive because through life costs are reduced further. Lower power consumption not only results in reduced running costs but also potentially provides lower initial capital costs, as smaller motors can be specified.
- In addition, installation costs can be reduced as lower-rated cabling may be required, and there are space-savings from the ability to use a smaller base plate for the pump and motor combination.
VapourView® Ultrasonic Monitor
keyboard_arrow_down keyboard_arrow_up
A gas detection system designed to bolster the reliability and eliminate dry-running of HMD Kontro API-685 sealless magnetic drive pumps. This warning system mitigates costly pump component replacements and downtime that can result from dry running, entrainment or cavitation.
The VapourView® is powered by an industry standard 24 VDC supply and returns a 4-20 mA signal suitable for monitoring using a distributed control system (DCS). It features both light emitting diode (LED) and liquid crystal displays (LCD) to provide information on process fluid conditions inside of the pump to process engineers.
The VapourView® has been performance tested and is compliant with explosive atmosphere and electro-magnetic compatibility requirements. The VapourView® non-intrusive gas-in-liquid detector can be easily retrofitted into any HMD Kontro API 685 pump and will operate at temperatures between -40 and +350 degrees F (-40 and +180 degrees C).
SECONDARY CONTROL & CONTAINMENT
keyboard_arrow_down keyboard_arrow_upHMD Kontro sealless magnetic drive pumps are available with secondary control devices to restrict any leaks. Mechanical devices are fitted to the drive shaft assembly and are activated in the unlikely event of containment shell failure. The pump coupling housing is also fitted with gaskets to eliminate any leaks across the joining faces.
Solids Handling
keyboard_arrow_down keyboard_arrow_up
All HMD Kontro pumps, as standard, can handle up to 5% hard solids and 150 microns diameter. The solid size can increase to 8% solids and 250 microns by fitting a self-cleaning in line filter.
For larger solids, HMD Kontro can provide pumps with a clean flush system or filter built into the flush pipework.
