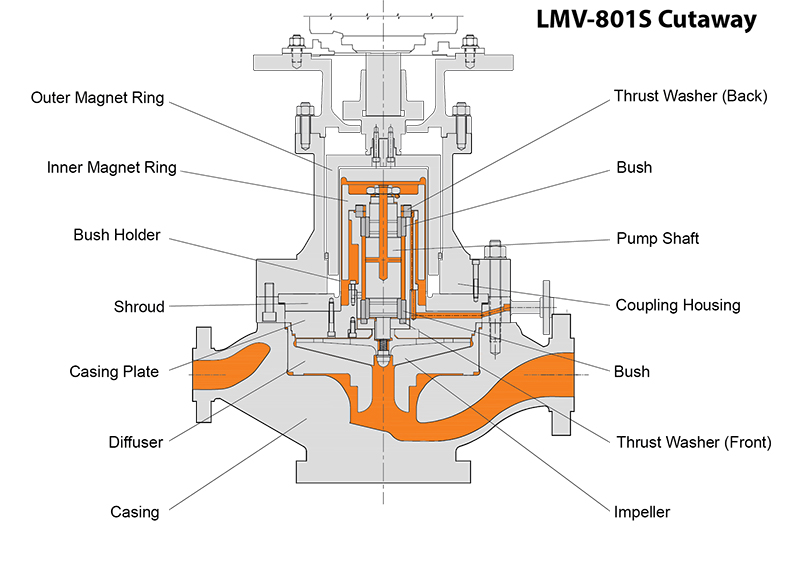

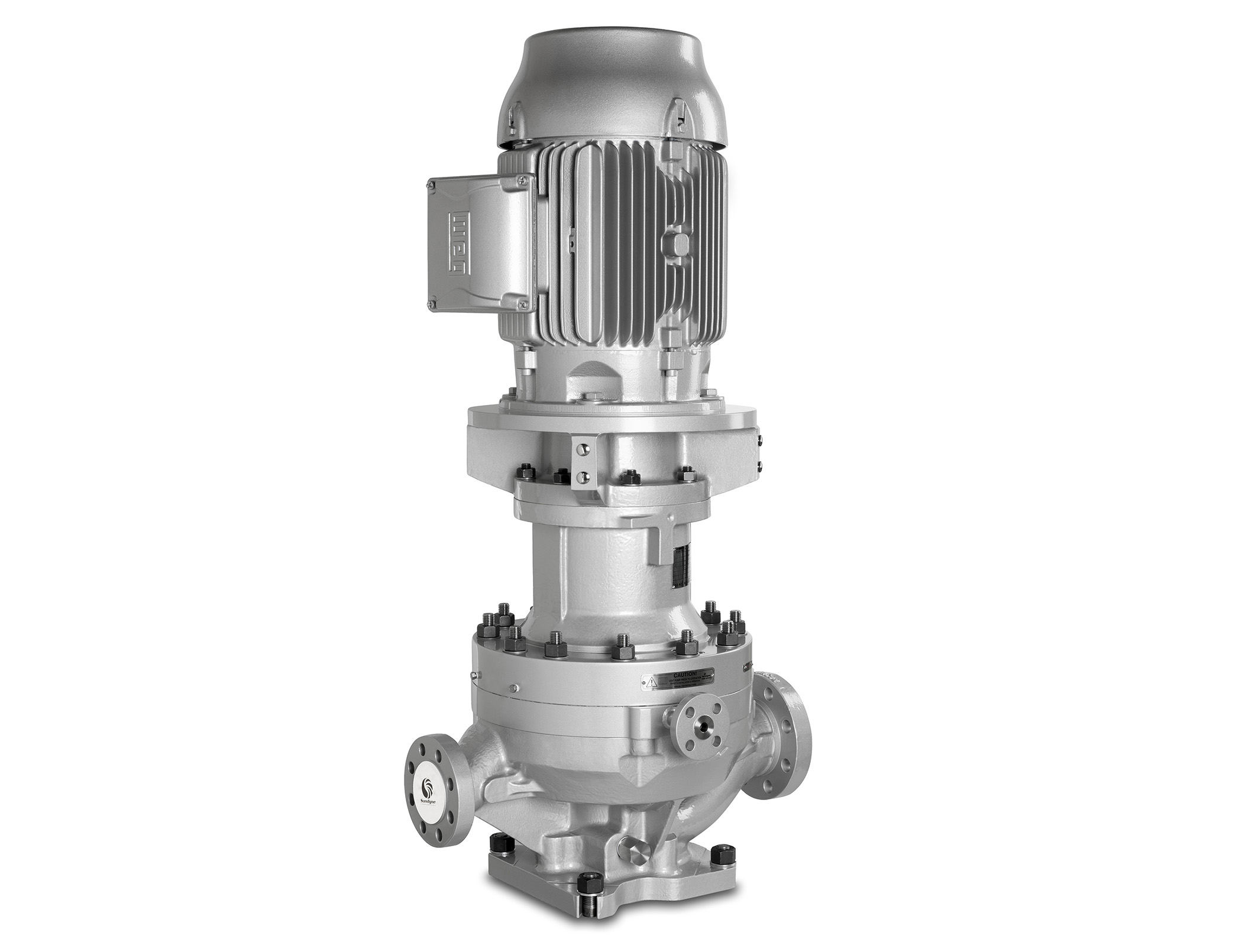

HMD Kontro LMV 801S – Line Mounted Vertical Pump

Sealless magnetic drive pumps from HMD Kontro are specifically designed for the safe handling and processing of hazardous and valuable hydrocarbons and chemicals for refineries throughout the world.

The vertical configuration is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

A range of synchronous magnet drives is offered with the pump range, which are rated to match prime mover performance.

For high temperature operation, a corresponding range of torque ring drives is also available and prime mover specifications can be catered for.

Benefits of the HMD Kontro LMV 801S Pump:

    • Single stage, vertical in-line overhung pump according to ISO 13709/API 685 sealless magnetic drive design recommendations
    • Sealless magnetic drive can be installed on any existing LMV 801 without changing piping or wet end components
    • No leaks for improved safety and environmental contamination
    • Safe for handling difficult or hazardous liquids
    • Less downtime for maintenance
    • Increased durability and reliability with cartridge seals
    • Maximised up time
    • Saves space @ 25% the size of competing horizontal pumps
    • ATEX certified
    • Single stage, vertical in-line overhung pump according to ISO 13709/API 685 sealless magnetic drive design recommendations
    • Sealless magnetic drive can be installed on any existing LMV 801 without changing piping or wet end components
    • No leaks for improved safety and environmental contamination





Hydrocarbon Processing

  • Sour water
  • Sulfuric acid
  • Benzene
  • Xylene
  • Toluene

Upstream

  • Produced water
  • LACT
  • Oil & Water Process Pumps
  • High Suction Pressure Pumps
  • High Capacity, High Pressure Pumps
  • Produced Water Start Up Pumps
  • Oil Start Up Pumps
  • Gylcol Dehydration Pumps
  • Sampling Pumps
  • Closed Drain Pumps
  • Flare Knockout Pumps
  • Seawater Cooling Pumps
  • Booster Pumps
  • Heat Transfer Fluid Pumps
  • Condensate Pumps

Our pumps combine cutting-edge technology with over seventy years of expertise and experience to give you complete piece of mind.

Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.

Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.

Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are  HMD Kontro pumps that have been in operation for over 30 years and are still running today.

Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements.  Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.

Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.

Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance.  Standard pumps and parts are available from the factory and in the field.

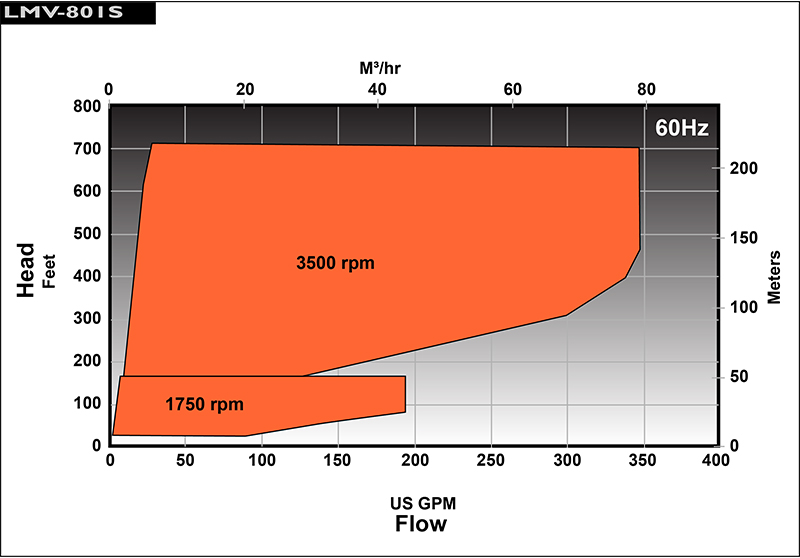

US 60 Hz

Heads to 720 ft
Flows to 380 gpm
Maximum Motor Power 100 Hp
Temperature Range -40 to 400°F
Maximum Case Working Pressure 580 psi
Hydrotest Pressure 870 psi
Maximum Viscosity 200 csT
Motor Details Industry standard
Solids Range Clean liquids only
Mounting Configuration Close coupled
Dimensional Standards N/A
Number of Available Hydraulics 2
Available Flanges ANSI 150lb/300lb RF

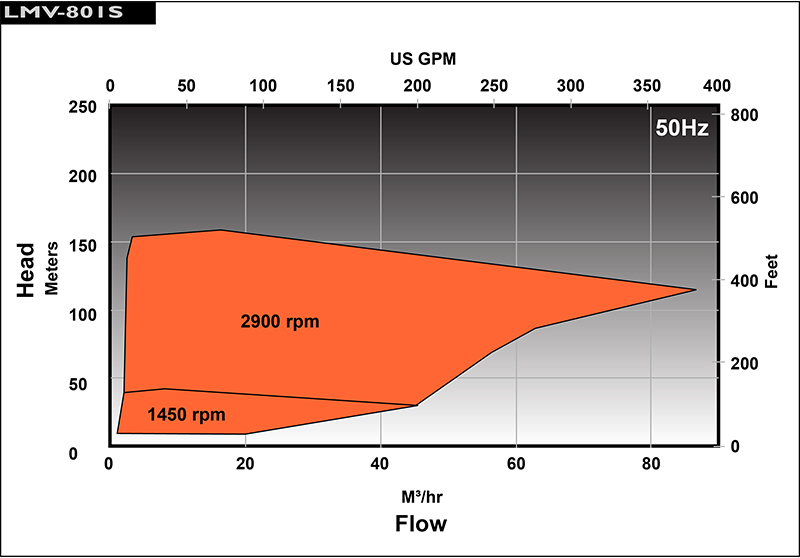

Metric 50 Hz

Heads to 220 m
Flows to 86 m3/hr
Maximum Motor Power 75 kW
Temperature Range -40 to 205°C
Maximum Case Working Pressure 40 Bar
Hydrotest Pressure 60 Bar
Maximum Viscosity 200 csT
Motor Details Industry Standard
Solids Range Clean liquids only
Mounting Configuration Close coupled
Dimensional Standards N/A
Number of Available Hydraulics 2
Available Flanges ANSI 150lb/300lb RF

Standard materials of construction

  • A-8 and S-5 with silicon carbide internal bearings and spiral wound gaskets.

Other material options are available on request

  • Duplex Stainless Steel
  • Alloy 20 and Alloy C276
  • Various flange options are available as standard

POWER MONITOR

Installed in the Motor Control Centre (MCC), a power monitor measures the power required to operate the pump.  By setting High and Low trip points, the power monitor is the perfect solution for protecting your pump from:

  • Dry running
  • Low flow operation
  • High flow operation
  • Severe cavitation
  • Magnet decoupling

Reduces Power Losses in the Pump to Zero

  • Excellent energy savings can now be made thanks to the introduction of the ZeroLoss® containment shell for larger pumps. The elimination of eddy current losses can result in up to a 20% saving in power consumption, further enhancing the benefits and green credentials of magnetic drive technology from Sundyne HMD Kontro.
  • The advantage increases in proportion with the magnetic coupling size and is particularly appropriate for larger pumps, making the magnetic drive option even more attractive because through life costs are reduced further. Lower power consumption not only results in reduced running costs but also potentially provides lower initial capital costs, as smaller motors can be specified.
  • In addition, installation costs can be reduced as lower-rated cabling may be required, and there are space-savings from the ability to use a smaller base plate for the pump and motor combination.

A gas detection system designed to bolster the reliability and eliminate dry-running of HMD Kontro API-685 sealless magnetic drive pumps. This warning system mitigates costly pump component replacements and downtime that can result from dry running, entrainment or cavitation.

The VapourView® is powered by an industry standard 24 VDC supply and returns a 4-20 mA signal suitable for monitoring using a distributed control system (DCS). It features both light emitting diode (LED) and liquid crystal displays (LCD) to provide information on process fluid conditions inside of the pump to process engineers.

The VapourView® has been performance tested and is compliant with explosive atmosphere and electro-magnetic compatibility requirements. The VapourView® non-intrusive gas-in-liquid detector can be easily retrofitted into any HMD Kontro API 685 pump and will operate at temperatures between -40 and +350 degrees F (-40 and +180 degrees C).

HMD Kontro sealless magnetic drive pumps are available with secondary control devices to restrict any leaks. Mechanical devices are fitted to the drive shaft assembly and are activated in the unlikely event of containment shell failure. The pump coupling housing is also fitted with gaskets to eliminate any leaks across the joining faces.

All HMD Kontro pumps, as standard, can handle up to 5% hard solids and 150 microns diameter. The solid size can increase to 8% solids and 250 microns by fitting a self-cleaning in line filter.

For larger solids, HMD Kontro can provide pumps with a clean flush system or filter built into the flush pipework.
