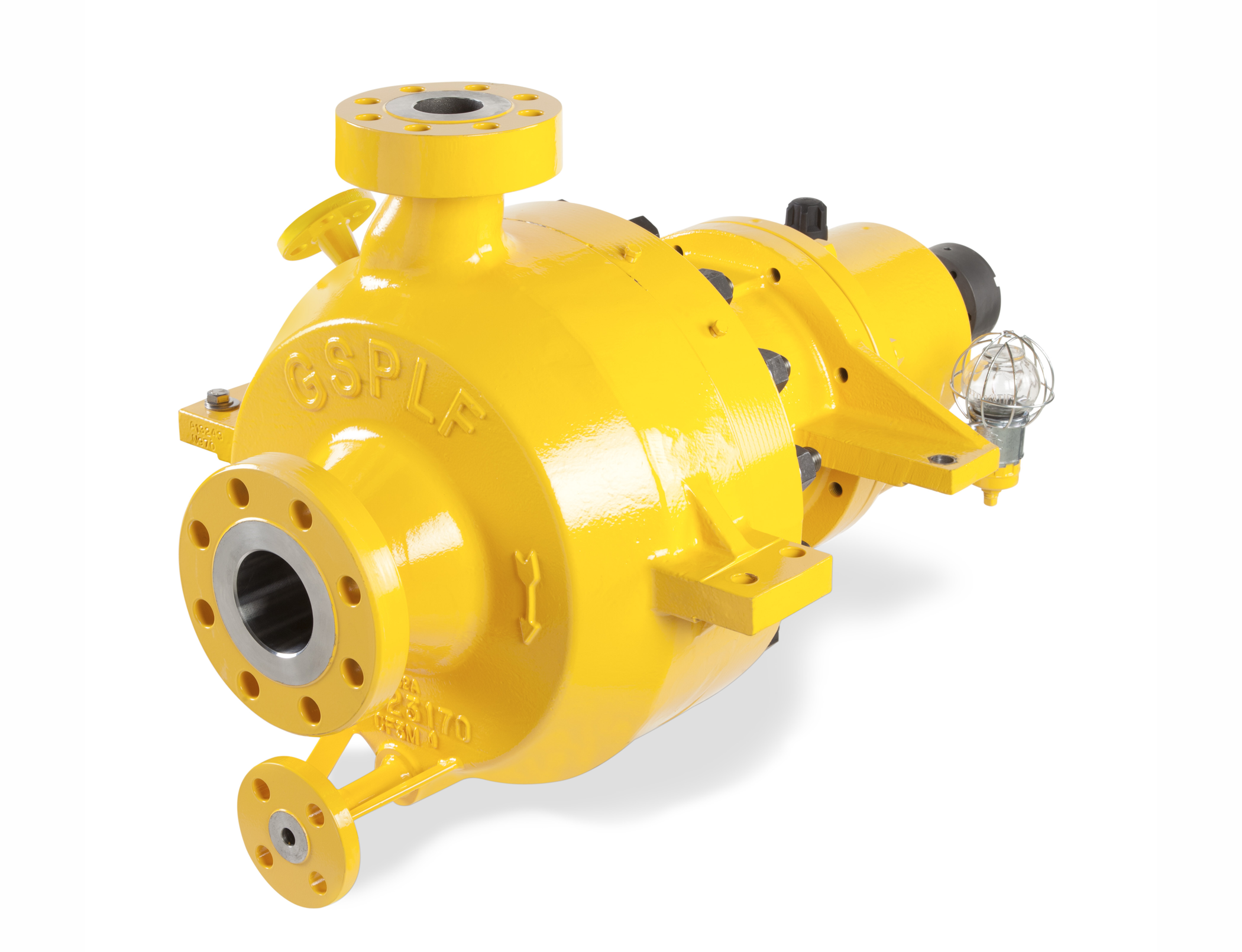

HMD Kontro GSPLF – General Service Petroleum Low Flow API 685 Sealless Magnetic Drive Pump
The GSPLF sealless magnetic drive pump from HMD Kontro is a low flow centreline mounted single stage pump with relatively high head capability.
It is a versatile and highly efficient pump for the safe processing and handling of hazardous and valuable hydrocarbons and chemicals. It is typically used in toxic, aggressive, hot, crystallising and high value processes.

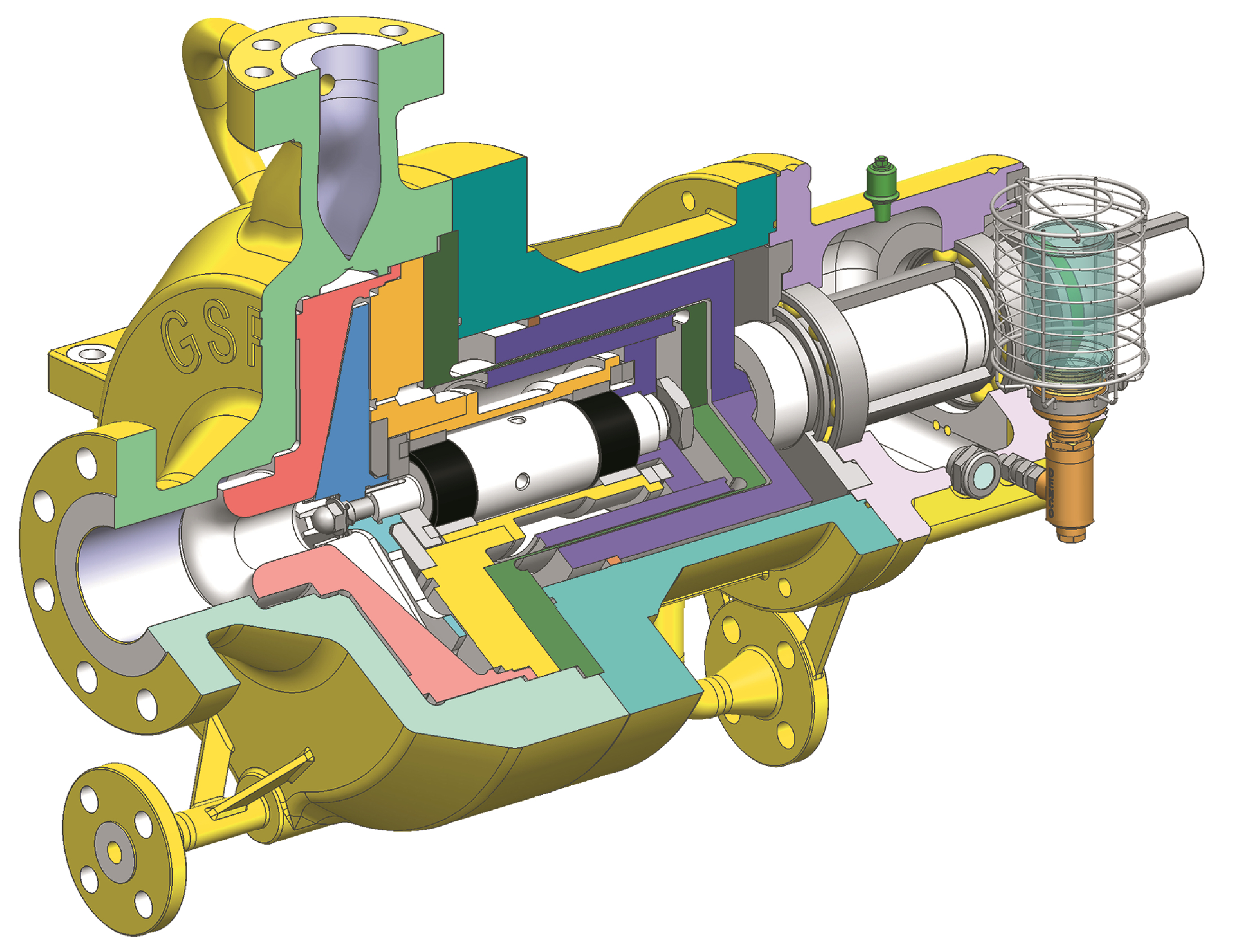

With a combination of the proven technologies of Sundyne Barske Wheel hydraulics and HMD Kontro sealless magnetic drive technology, optimised reliability and efficiency is ensured to promote efficient, cost-effective and trouble free plant operation.
The GSPLF is suitable, and the pump of choice for heavy-duty applications in oil & gas, chemical and petrochemical installations and meets the requirements of API 685 as well as all the specifications demanded by these industries. An extra advantage is the flexibility of its diffuser and impeller, which can be easily upgraded should the pump’s duty be changed, without the necessity to replace the pressure casing.
Benefits of the HMD Kontro GSPLF Pump:
-
- Barske Wheel hydraulics for optimum efficiency in low specific speed (Ns) applications
- Single basic frame size to suit power requirements
- Barske Wheel design reduces radial and axial bearing loads
- Removable diffuser for simple rerating to different process conditions – no costly machining
- Suction tuned inducers for low NPSHa conditions
| Flows to | 30 m³/hr (160 gpm) |
| Heads to | 150 m (720 ft) |
| Pressure | 40 bar / 580 psi |
| Temperature Range | -100 to 315°C (-145 to 600°F) |
The GSPLF is suitable, and the pump of choice for heavy-duty applications in oil & gas, chemical and petrochemical installations and meets the requirements of API 685 as well as all the specifications demanded by these industries.
Applications
keyboard_arrow_down keyboard_arrow_up|
|
Oil & Water Process Pumps
High Suction Pressure Pumps High Capacity, High Pressure Pumps Produced Water Start Up Pumps Oil Start Up Pumps Gylcol Dehydration Pumps Sampling Pumps |
Closed Drain Pumps Flare Knockout Pumps Seawater Cooling Pumps Booster Pumps Heat Transfer Fluid Pumps Condensate Pumps |
Benefits
keyboard_arrow_down keyboard_arrow_upOur pumps combine cutting-edge technology with over seventy years of expertise and experience to give you complete piece of mind.
Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.
Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.
Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are HMD Kontro pumps that have been in operation for over 30 years and are still running today.
Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements. Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.
Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.
Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance. Standard pumps and parts are available from the factory and in the field.
Specifications

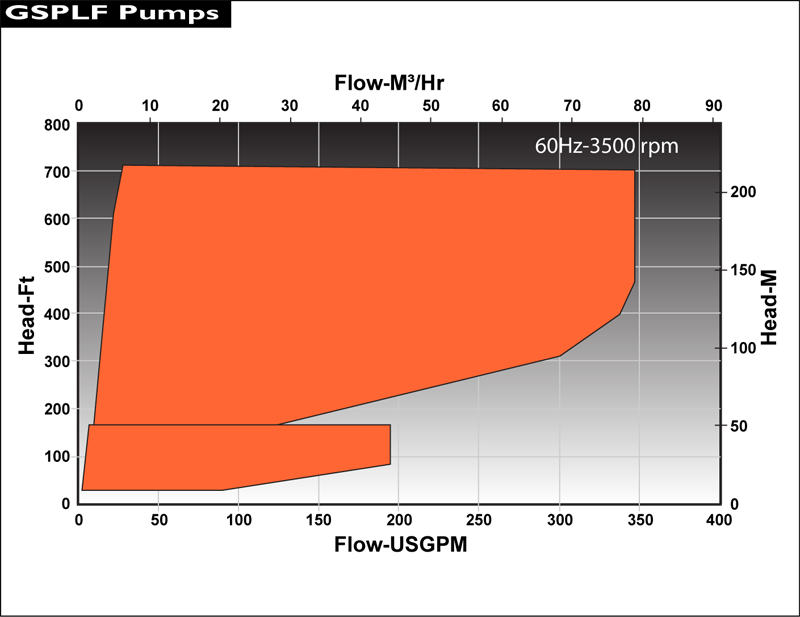

keyboard_arrow_down keyboard_arrow_upUS 60 Hz
| Heads to | 720 ft |
| Flows to | 160 gpm |
| Maximum Motor Power | 125 HP |
| Temperature Range | -40 to 600°F |
| Maximum Case Working Pressure | 580 psi |
| Hydrotest Pressure | 870 psi |
| Maximum Viscosity | 200 csT |
| Motor Details | Industry standard |
| Solids Range | Maximum of 5% w/w up to 150 microns |
| Mounting Configuration | Long coupled |
| Dimensional Standards | N/A |
| Number of Available Hydraulics | 14 |
| Available Flanges | ANSI 150lb / 300lb RF |

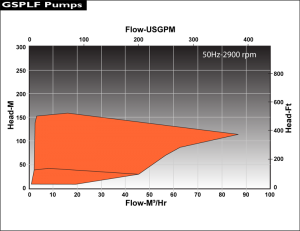

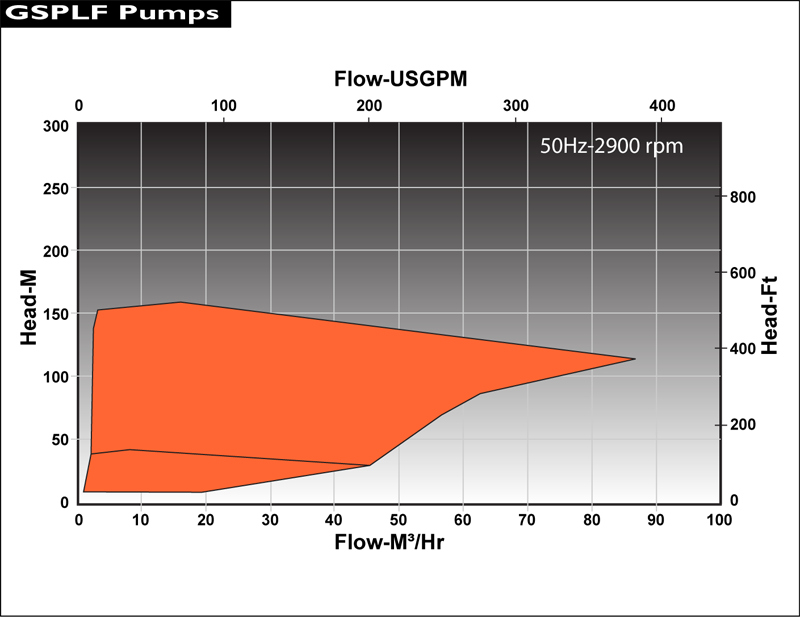

Metric 50 Hz
| Heads to | 150 m |
| Flows to | 30 m3/hr |
| Maximum Motor Power | 90 kW |
| Temperature Range | -40 to 315°C |
| Maximum Case Working Pressure | 40 Bar |
| Hydrotest Pressure | 60 Bar |
| Maximum Viscosity | 200 csT |
| Motor Details | Industry Standard |
| Solids Range | Maximum of 5% w/w up to 150 microns |
| Mounting Configuration | Long coupled |
| Dimensional Standards | N/A |
| Number of Available Hydraulics | 14 |
| Available Flanges | ANSI 150lb / 300lb RF |
Materials
keyboard_arrow_down keyboard_arrow_upStandard materials of construction
- A-8 and S-5 with silicon carbide internal bearings and spiral wound gaskets.
Other material options are available on request
- Duplex Stainless Steel
- Alloy 20 and Alloy C276
- Various flange options are available as standard
Power Monitor
keyboard_arrow_down keyboard_arrow_upPOWER MONITOR
Installed in the Motor Control Centre (MCC), a power monitor measures the power required to operate the pump. By setting High and Low trip points, the power monitor is the perfect solution for protecting your pump from:
- Dry running
- Low flow operation
- High flow operation
- Severe cavitation
- Magnet decoupling
New ZeroLoss™ Containment Shell
keyboard_arrow_down keyboard_arrow_upReduces Power Losses in the Pump to Zero
- Excellent energy savings can now be made thanks to the introduction of the ZeroLoss® containment shell for larger pumps. The elimination of eddy current losses can result in up to a 20% saving in power consumption, further enhancing the benefits and green credentials of magnetic drive technology from Sundyne HMD Kontro.
- The advantage increases in proportion with the magnetic coupling size and is particularly appropriate for larger pumps, making the magnetic drive option even more attractive because through life costs are reduced further. Lower power consumption not only results in reduced running costs but also potentially provides lower initial capital costs, as smaller motors can be specified.
- In addition, installation costs can be reduced as lower-rated cabling may be required, and there are space-savings from the ability to use a smaller base plate for the pump and motor combination.
VapourView® Ultrasonic Monitor
keyboard_arrow_down keyboard_arrow_up
A gas detection system designed to bolster the reliability and eliminate dry-running of HMD Kontro API-685 sealless magnetic drive pumps. This warning system mitigates costly pump component replacements and downtime that can result from dry running, entrainment or cavitation.
The VapourView® is powered by an industry standard 24 VDC supply and returns a 4-20 mA signal suitable for monitoring using a distributed control system (DCS). It features both light emitting diode (LED) and liquid crystal displays (LCD) to provide information on process fluid conditions inside of the pump to process engineers.
The VapourView® has been performance tested and is compliant with explosive atmosphere and electro-magnetic compatibility requirements. The VapourView® non-intrusive gas-in-liquid detector can be easily retrofitted into any HMD Kontro API 685 pump and will operate at temperatures between -40 and +350 degrees F (-40 and +180 degrees C).
SECONDARY CONTROL & CONTAINMENT
keyboard_arrow_down keyboard_arrow_upHMD Kontro sealless magnetic drive pumps are available with secondary control devices to restrict any leaks. Mechanical devices are fitted to the drive shaft assembly and are activated in the unlikely event of containment shell failure. The pump coupling housing is also fitted with gaskets to eliminate any leaks across the joining faces.
Solids Handling
keyboard_arrow_down keyboard_arrow_up
All HMD Kontro pumps, as standard, can handle up to 5% hard solids and 150 microns diameter. The solid size can increase to 8% solids and 250 microns by fitting a self-cleaning in line filter.
For larger solids, HMD Kontro can provide pumps with a clean flush system or filter built into the flush pipework.
